mph HYSC-24

יצרן: מפה

מק"ט: HYSC-24

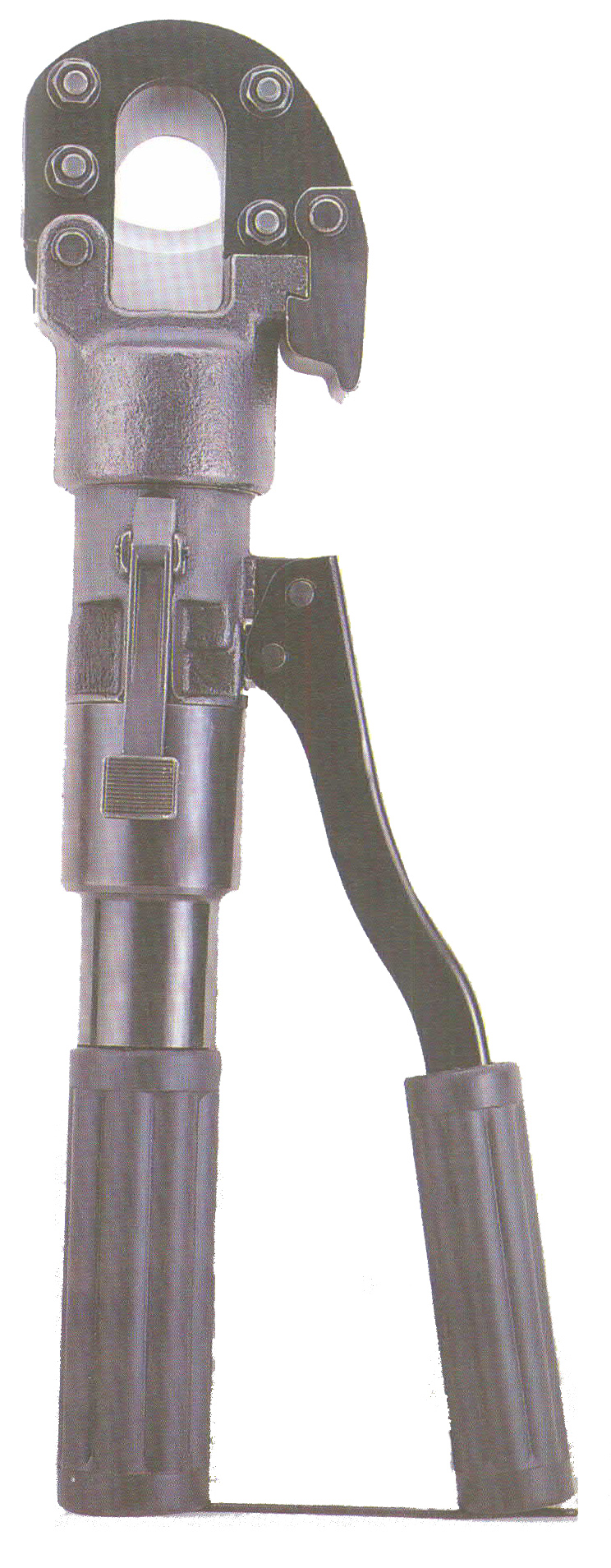

חותך הידראולי לכבלי נחושת ואלומיניום עד קוטר 24 מ"מ

עם נרתיק נשיאה

מידע כללי

Model No. HYSC-24
Length: 430 (L)mm Weight: 4.0 kgs
Specifications:
Max. Pressure: 700 bar Oil Required: 56 cc
Max Output: 6.7 ton
Single stage pumping action
Cutting Capacity:
Wire rope 6x7 : 18 mm
Wire rope 6x12 : 24 mm
Wire rope 6x19 : 24 mm
Soft steel bar : 20 mm
Reinforcing rod : 16 mm
Cu Strands : 24 mm
Al Strands : 24 mm
ACSR : 24 mm
Guy wire 1x7 : 20 mm
Guy wire 1x19 : 20 mm
CCP cable : N /A Cutting of piano wire is prohibited.
Features:
180° Rotating heads for convenient operation.
Superior guillotine type cutting for less. jamming than shear type cutters.
All blades are easily replaceable.
Flip-top latch for easy insertion of cutting
material.
Single stage pump action with spring return.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.
Accessories:
Carrying Bag
