LUTRON VT-8204

יצרן: LUTRON
מק"ט: VT-8204
מסמכים להורדה
מידע כללי

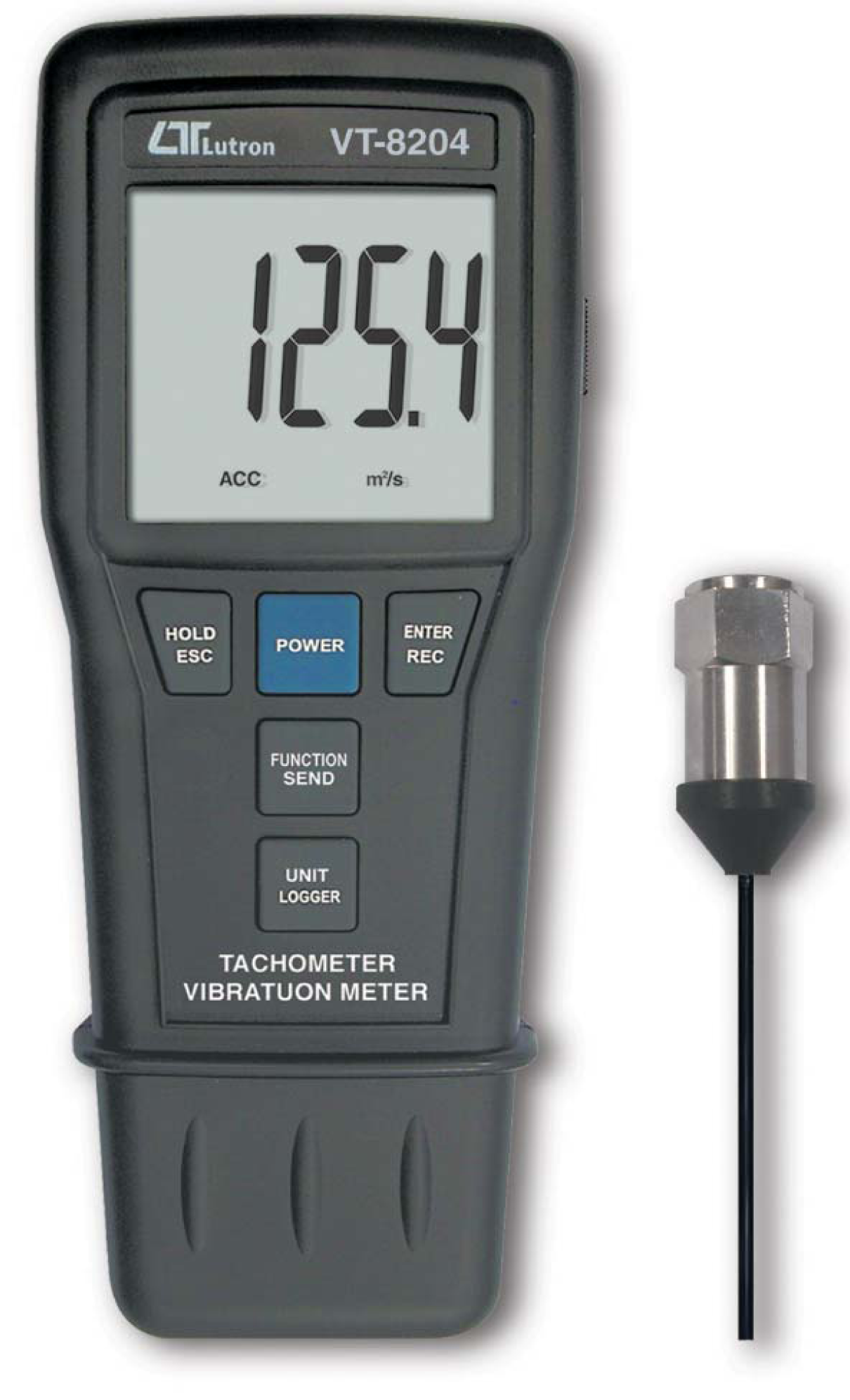

VIBRATION/TACHOMETER, 3 in 1

Model : VT-8204

  • Separate professional vibration sensor.
  • Vibration meter :
    Acceleration : 200 m/s2, RMS, PEAK, Max. Hold, g, ft/s2.
    Velocity : 200 mm/s, RMS, PEAK, Max. Hold, cm/s, inch/s.
    Displacement ( p-p ) : 2 mm, Max. Hold, cm, inch.
  • Tachometer ( photo ) : 10 to 100,000 RPM.
    Tachometer ( contact ) : 5 to 19,999. RPM
    Tach. ( surface speed ) : m/min., ft/min. inch/min.
  • Laser photo tachometer.
  • 1600 Data logger point.
  • Data hold, record ( Max., Min. )
  • Optional IR probe, IR-962.
  • RS-232 computer interface.
  • DC 1.5V ( UM-3, AA ) x 4 PCs.
  • Patented.
