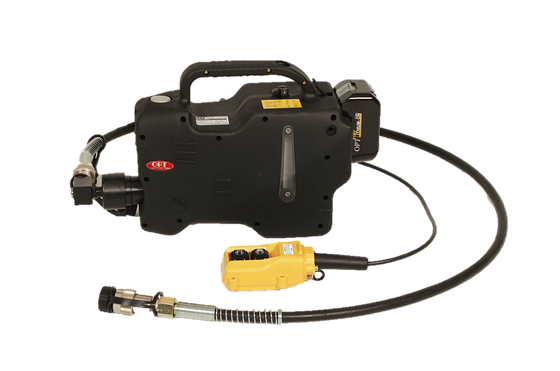

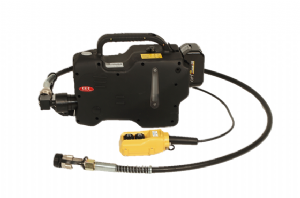

PM-P5 & PMS-P5

PM-P5 (18V Li-Ion/Normal type)

PMS-P5 (18V Li-Ion/Sensor type)

18V Li-Ion battery drived

Operation with remote control single acting

700kgF/cm2 oil pressure

270c.c./min. oil speed at Max. pressure 700kgF/cm2

1600c.c./min. oil speed at Min. pressure 20kgF/cm2

1.6 Liter reservoir capacity

Weight: 6.5 Kgs (PM-P5/PMS-P5)

Dimension: 330(L)*271(W)*155(H)mm (PM-P5/PMS-P5)

Standard accessory: 1pcs charger, 1pcs battery, 1pcs 1.8M hose , 1pcs remote control (RC-1), 1 pcs shoulder bag

Sensor version only: Reminder & buzz warning system for temperature, voltage, pressure, power & record.

Record crimping & Punching & Cutting times(with TA-21). TA-21 needs to be extra purchased
