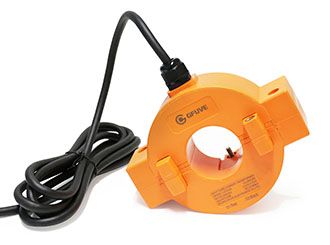

LZCK55
סדרת משני זרם מתפרקים יצוקים באפוקסי
להתקנה מהירה סביב כבלי מתח גבוה מבודדים בלוחות קיימים.
משני הזרם בנויים מגרעינים כפולים ומשמשים גם למדידה וגם להגנה.
זרם ראשוני : 100-3000A
זרם משני : 1A או 5A
דיוק : 0.5S, 0.5%, 1%, 3%
משני הזרם מסופקים עם כבל באורך 2 ,5, או 10 מטר
אטומים למים ואבק IP-65 להתקנה חיצונית (outdoors)
עומד בתקנים : IEC60044-1; IEC 61869-2; NTC 2205; ANSI C57.13; GB1208-2006
Technical parameters |
|
Standards |
IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
Accuracy Class |
0.5S, 0.5%, 1%, 3% |
Range of primary rated current |
100-1000A |
Range of Rated load |
≤10VA |
Rated frequency |
50/60Hz |
Rated secondary current |
5A or 1A |
Rated short-time thermal current |
40kA, 1S |
Rated continuous thermal current |
150%I1n |
Secondary winding power frequency withstand voltage |
3kV, 1min |
Safety Factor Rating |
(FS) <10 |
Output signal |
1A, 5A, 333mV, 1V or 5V(customized) |
Cable length |
2.5m, 5m, 10m(customized) |
Flame retardant ABS plastic shell inside, jaw waterproof apron. |
|
Mechanical parameters |
|
Aperture (mm) |
Φ55 |
Dimensions (W×D×H) (mm) |
180×138×52 |
Weight (kg) |
2 |
Working conditions |
|
Operating temperature |
-35°C to +65°C, not exceeding +40°C |
Storage temperature |
-40°C to +70°C |
Ingress Protection |
IP65 |
Environment |
outdoors or indoors |
The Height of above sea level |
0- 3000m |
Conditions |
No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
