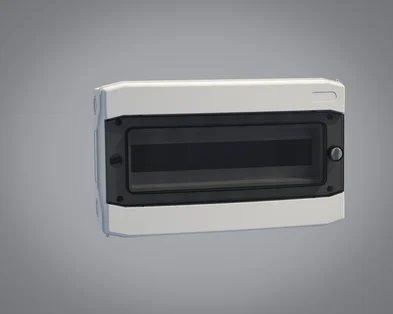

MCE65 18M
Dimensions 259 x 428 x 142
Dimensions 10.2 x 16.85 x 5.59
Including : DIN rail, Insulated terminals, neutral and earth, Cover for unused modules, Installation accessories, Plastic cap for screws
- PC : IP65; IK08
Technical data
Description : Modular component enclosures
Remarks : 18 modules, 1 row
Package : 1
Unit : Piece
EAN : 6418074315748
Electric No. Denmark : 8212099953
ETIM : EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm) : 259
Width (mm) : 428
Depth (mm) : 142
Height (inch) : 10.2
Width (inch) : 16.85
Depth (inch) : 5.59
Material : Acrylonitrile acrylic styrene
Base colour : RAL_7035
Cover colour : Smoked grey
Temperature °C : -25 … 60
Standards EN 62208:2015, IEC 62208:2015
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695): 650C
