מק"ט: ALU1236

מסמכים

Order symbol	Product nbr	EAN	Dimensions (mm)	Description • Remarks

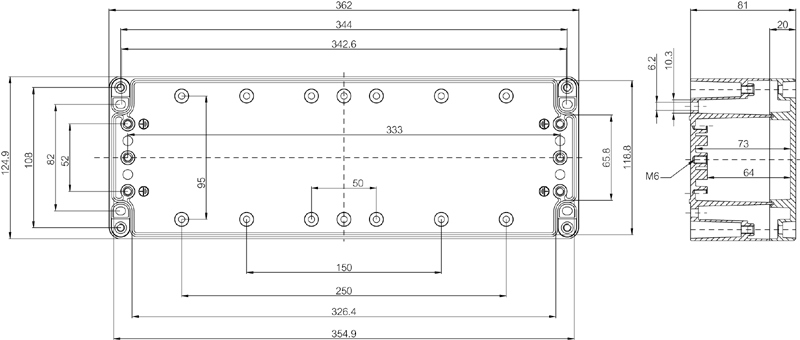

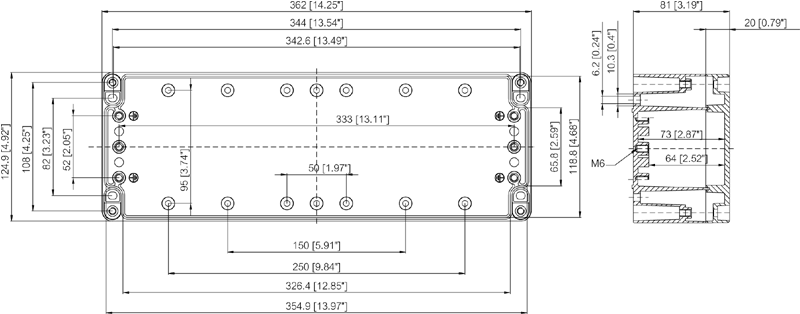

AL 123608	7011250	6418074004178	362 x 125 x 81	Enclosure, aluminium • Aluminium
Accessories
AM 1212	9511150	6418074033833	107 x 110	Mounting plate, for enclosures:
AM 1222	9511095	6418074033840	107 x 207	Mounting plate, for enclosures:
AM 1236	9511174	6418074033857	107 x 347	Mounting plate, for enclosures:
ARH 12	9822001	6418074034274	35 x 105	DIN-35 Mounting rail, for enclosures:
ARH 36	9822015	6418074034311	35 x 343	DIN-35 Mounting rail, for enclosures:
MR 75005	7075005	6418074033772		Selftapping taptite screw M5, for enclosures:
MRS 28541	7028541	6418074033758	15 x 50	Wall fastening lug (2 pcs), for enclosures: • incl. screws
PH A & AH A/B	9801047	6418074034090		Hinge set
