מק"ט: PRT

סידרת קבלים גליליים להתקנה בלוחות בלבד.

הספקים : 2.5-60 קווא"ר

מתח נומינלי 440V,690V,750V,800V

(במלאי 440V ומתחים אחרים בהזמנה מיוחדת)

הקבלים כוללים נגדי פריקה ובלוק מגעים לחיבור מהיר.

הקבלים עומדים בתקן IEC 60834-1/2 ונבדקים במכון התקנים.

למוצר הבא
לקבלת הצעת מחיר ומידע נוסף

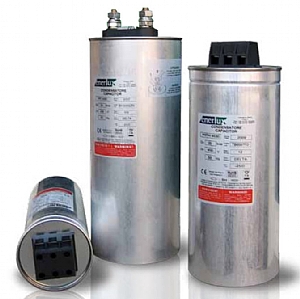

Terasaki/Enerlux three phase PRT capacitors are self-healing and consist of three single-phase elements made of metalised polypropylene film with a delta connection in a cylindrical casing of extruded aluminum. The fixing spigot is M12 x 12 mm and is used to earth the capacitor.

The capacitor is enclosed with a steel disc on the aluminum casing, ensuring a perfect air and water seal. The capacitors are designed with an overpressure disconnecting safety device. This protection immediately cuts off the power supply to the capacitor in the event of a fault due to excessive overvoltage. A fiberglass reinforced mount supports the three connection terminals. We recommend you leave at least 25 mm clear space above the connection terminals to allow the overpressure device to work properly.

All capacitors are manufactured to the highest standard (IEC 60834-1/2) ensuring excellent duty and performance.

REFERENCE

kvar

V

A

MICRO FARAD

DIAMETER

Ø (mm)

HEIGHT(mm)

PACKING PIECES

PRt 4402

2.5

440

3,28

3x 13,7

75

163

12

PRT.4405

5.0

440

6,56

3x 27,4

75

'163

12

PRT.4407

7.5

440

9,85

3 x 41,0

75

163

12

PRT.4410

10.0

440

13,13

3x 54,8

75

201

12

PRT.4412

12.5

440

16,42

3x 68,5

75

238

12

PRT.4415

15.0

440

19,70

3x 82,2

75

238

12

PRT.4420

20.0

440

26,28

3 x 109,6

85

238

12

PRT.4425

25.0

440

32,85

3 x 137,0

100

238

15

PRT.4430

30.0

440

39,42

3 x 164,0

100

238

15

PRT.4436

36.5

440

48

197 * 3

100

276

15

PRT.4440

40.0

440

52,50

3 x 219,3

120

238

6

PRT.4450

50.0

440

65,69

3 x 274,1

120

278

6

PRT.4460

60.0

440

78,80

3 x 329,0

120

278

 6

















PRT.4602

2.5

460

3,13

3x 12,5

75

163

12

PRT.4605

5.0

460

6,28

3 x 25,0

75

163

12

PRT.4607

7.5

460

9,41

3 x 37,6

75

163

12

PRT.4610

10.0

460

12,57

3x 50,2

75

201

12

PRT.4612

12.5

460

15,71

3x 62,7

75

238

12

PRT.4615

15.0

460

18,82

3x 75,2

85

238

12

PRT.4620

20.0

460

25,13

3 x 100,3

85

238

12

PRT.4625

25.0

460

31,41

3 x 125,4

100

238

15

PRT.4630

30.0

460

37,70

3 x 150,5

100

238

15

PRT.4640

40.0

460

50,26

3 x 200,8

120

278

6

PRT.4650

50.0

460

62,83

3 x 250,8

120

278



















PRT.4802

2.5

480

3,01

3x 11,5

75

163

12

PRT.4805

5.0

480

6,02

3 x 23,0

75

163

12

PRT.4807

7.5

480

9,03

3 x 34,5

75

163

12

PRT.41310

10.0

480

12,04

3x 46,0

75

163

12

PRT.4812

12.5

480

15,05

3x 57,6

75

238

12

PRT.4815

15.0

480

18,06

3x 69,1

75

238

12

PRT.4820

20.0

480

24,08

3x 92,1

85

238

12

PRT.4825

25.0

480

30,10

3 x 115,2

100

238

15

PRT.4830

30.0

480

36,10

3 x 138,2

100

238

15

PRT.4840

40.0

480

48,17

3 x 184,3

120

238

6

PRT.4850

50.0

480

62,83

3 x 250,8

120

278
