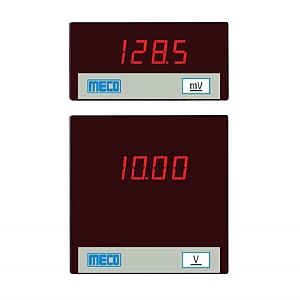

MECO DHS

•     Measuring Method

Dual Slope AID Conversion

•     Sampling Rate

2.5 Samples per Second

•     Display Type

Red LED Super Bright Display

•     Maximum Display

1999 Counts

•     Resolution

0.001 to 1 Count depending on range

•     Polarity Indication

" - " is indicated for Negative Input

•     Decimal Selection

Field Selectable

•     Over Range Indication

" 1 " or " -1

•     Maximum Overload

Voltage : 1.2 times continuous

Current : 2 times continuous

•     Frequency Response

40 - 400Hz

•     Faceplate / Lens

Red Antiglare Faceplate with Annunciators

•     Environment

Calibration : 27°C + 5°C,

Operating : 0 to 50°C, RH < 70%

Storage : -10 to 60°C, RH < 70%

•    Crest Factor

4 (max.) TRMS accuracy specified for sine

wave input

•    VA Burden (Typical)

Auxiliary (110 / 230V AC) : < 5VA

Auxiliary (SMPS) : < 2.5VA

Voltage : < 0.1VA

Current : < 0.5VA, < 0.2VA in 20A

•     Dielectric Strength

2.5 kV at 50Hz for 1 min. between

Input -Auxiliary- Case - Terminals

•    Case! Housing

Material

DIN Black ABS, Dimension as per DIN

43700

•    Mounting Clamps

Sturdy, Moulded ABS with suitable

Hardware

•    Connectors

Terminal Block : Thermoplastic (UL 94V-0)

with Tin Plated Brass Terminals

•     Display Stability

Within + 2 Digits
