יצרן: מפה
מק"ט: DBBN-120

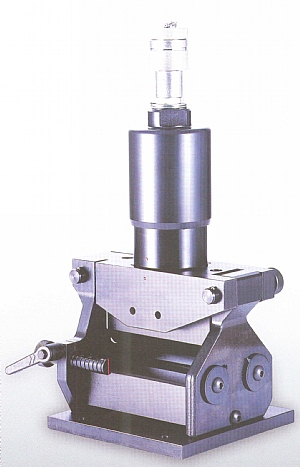

ראש מכופף הידראולי לפסי צבירה

מכופף פסים בעובי עד 12 מ"מ וברוחב 120 מ"מ

כולל מד זוית מובנה לבדיקת זוית הכיפוף

נפתח מצד אחד על ציר

לקבלת הצעת מחיר ומידע נוסף
  • Model No. DBBN-120
    Height: 360 (H)mm Weight: 15.8 kgs
  • Specifications:
    Max. Pressure: 700 bar Oil Required: 124 cc
    Max Output: 21.8 ton Effective stroke: 120 mm
  • Bending Capacity:
  • Max. Width : 120 mm
  • Max. Angle : 90 degree
  • Max. Thickness : 12 mm
  • Cutting materials : Aluminum, Copper
  • Features:
  • Vertical stand ideally suited for bending solid copper and aluminum bus bars.
  • 'Draw-Bridge' frame design is easy to use.
  • 2 lateral parallel-stops for exact angular positioning of bus bars.
  • Convenient scale for reading the current bending angle.
  • Single action cylinder can be uncoupled from the bending unit.
  • The cylinder can also be connected to the bus bar cutting model HYBC-120.
  • Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
