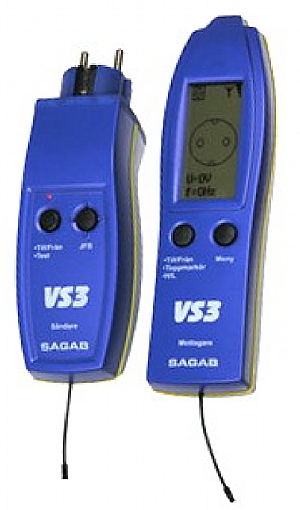

SAGAB VS3

“The tracker dog” VS3 is a combi instrument for troubleshooting and checking electrical installations.

The instrument has four functions:

• Socket tester
• Phase identifier
• Fuse identifier
• RCD tester



  Technical Specification VS3 “The tracker dog”
  Voltage range	100 - 240 VAC
  Frequency range	45 - 65 Hz
  Accuracy	+-3%
  Radio frequency	869.525 MHz
  Altitude	<2000 m
  Relative Humidity	80% @ 30°C, 50% @ 40°C
  Material	PC-ABS
  Auto power off	After approx. 1 h
  Size
  - Transmitter	180 x 60 x 45 mm
  - Receiver	195 x 60 x 37 mm
  Weight
  - Transmitter	200 g
  - Receiver	210 g
  Approvals
  - Transmitter	CAT II 300V
  - Receiver	CAT III 600V
  Complies with Standards	IEC61010-1
  Display	128 x 64 pixels
  Backlight	Yes
  Indicating E-field	Bar graph and sound variation
  Max distance	1.2 km line of sight between transmitter and receiver
  Work temp	-10°C to 50°C
  Power supply
  - Transmitter	2 x AA (LR6) batteries (included)
  - Receiver	2 x AA (LR6) batteries (included)
  Approvals
  - Transmitter	CE CAT II 300V
  - Receiver	CE CAT III 600V
  Complies with Standards
