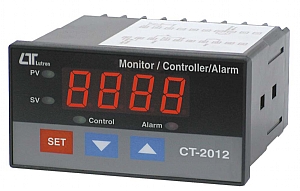

LUTRON CT-2012 - בקר תהליך

* Input : 4-20 mA DC, linear.

* User can default the desired display value between

-1999 to 9999 ( decimal point can be selected to DP1,

DP2, DP3 ) and all the preset data will be saved into

the memory circuit permanently.

* According the 4 to 20 mA input signal, user can preset

the desire display value between -1999 to 9999 ( decimal

point can select to DP1, DP2, DP3 ). Until set the display

value, all the data will save into the memory circuit

permanently

* When CT-2012 cooperate LUTRON's 4 to 20 mA

transmitters ( or any other transmitters if it build 4 to

20 mA output signal ), whole system will become the

high performance Controller/Alarm/Indicator for

following measuring functions : Humidity, Light, pH,

Dissolved Oxygen, Conductivity, Vibration, Pressure,

Sound, Temperature, RPM, Hz, Load cell ( Weight,

Force ), Potential ( Angle, Level ). ACV, ACA, DCV,

DCA, WATT....

* Easy to adjust the function factors by push button

on the front panel.

* Control output : 2 points ( COM, NO).

* Alarm output : 2 points ( COM, NO).

* Control Relay will make action when the reading value

reach to control value.

* Hysteresis value setting for control and alarm function.

* Large red LED display, high brightness and easy to read.

* Microprocessor circuit ensures high accuracy and

provides special functions and features.

* DC 12V power supply output.

* R5232/USB computer interface.

* Power : 90 ACV - 264 ACV, 50/60 Hz.

* Standard 96 X 48 mm DIN case.

* Optional data acquisition software.
