Description:

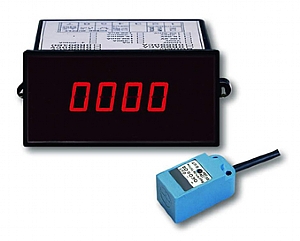

Panel tachometer measures RPM, line speed, or flow.Microprocessor based and with added functionality. It offers two relays, for example for high and low limits, and an RS232C output which may be used with Lutron DAQ software for PC.
| Display |
14.3 mm (0.56") high brightness red redLED. 4 digits., max. display 9999. |
| Signal input |
One round per input signal to get RPM resolution ( recommend to matchoptional proximity sensor, PX-01 ). |
| Range |
5 to 9,9990 RPM |
| Resolution |
0.1 RPM ( 5 to 999 RPM ). |
| 1 RPM ( 1000 to 9,999 RPM ). |
| 10 RPM ( over 10,000 RPM ). |
| Accuracy |
± (0.05% + 1 d). |
| Sampling time |
1 sec. over 60 RPM. |
| Range select |
Automatic. when measuring value over 9999 RPM. display will show x 10 LED indicator. |
| Operating temp. |
0 to 50 ℃ (32 to 122℉) |
| Operating humidity |
Less than 80% RH. |
| Power supply |
AC 110V,220V, 50/60 Hz ( or 230V internal adjustment ). |
| Power consumption |
Approx. AC 16 mA ( AC 110V power). |
| Approx. AC 9 mA ( AC 220V/230 power). |
