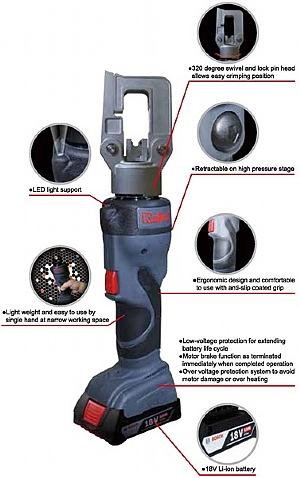

n Model No. K-240 (with Li-ion Battery &
Length: 354 mm / Wt.: 2.3 kgs(w/o battery) Weight: 2.7 kgs (2.0Ah battery included)
n Specifications:
Drive unit: 18V DC Motor Charger (GS/CE):
Input voltage : 110V Single Phase AC
Input voltage : 230V Single Phase AC
Input frequency : 50-60 Hz
Reservoir capacity : 48 cc
n Crimping Capacity:
Max. Pressure: 460 bar
Max Output: 5.3 tons / 52 kN
Max. Compression: 240 mm2 copper Accepts BEKU type dies
Stock Dies are for DIN 46235 Terminals Dies sold separately (See page 127)
(AHE 1016/2535/5070/95120/150/185/240)
