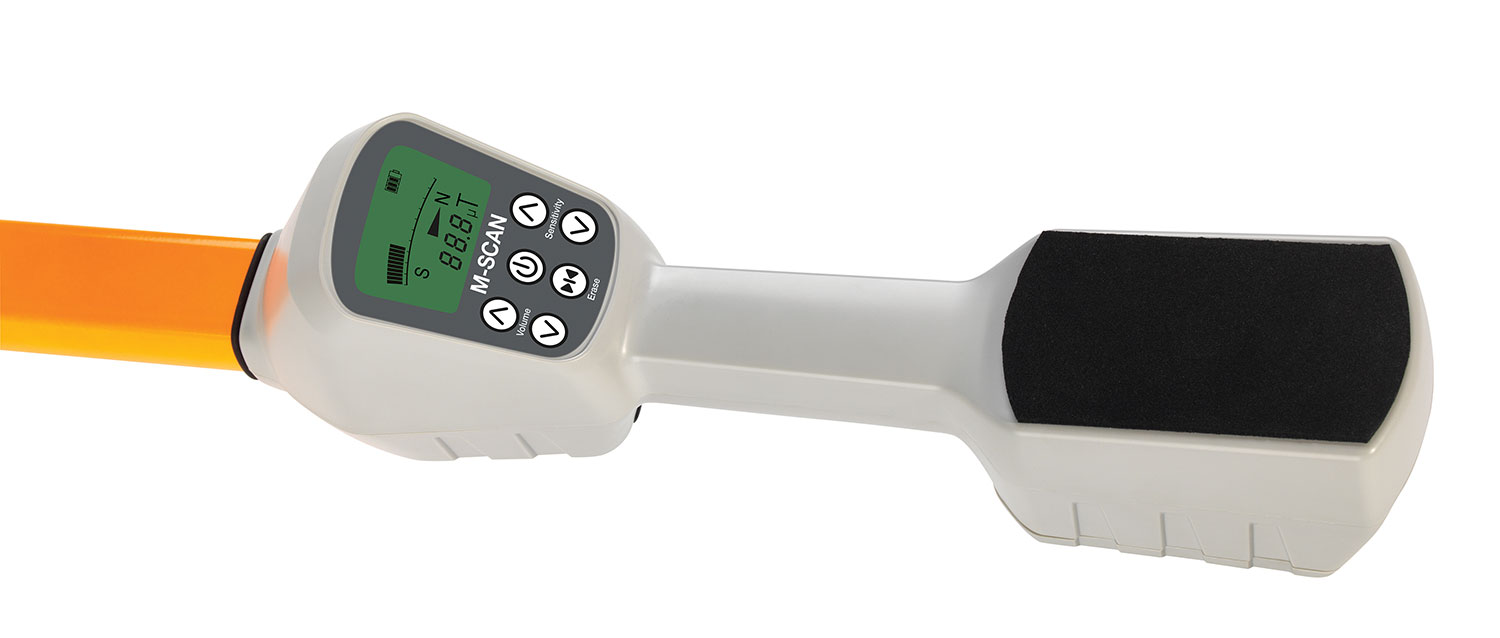

C-SCOPE M-SCAN - חדש!!!! C-SCOPE M-SCAN - חדש!!!!
יצרן: C-SCOPE
מק"ט: M-SCAN

גלאי פתחי שירות.

מסוגל לגלות עצמים מתכתיים עד לעומק של 5 מטר

משמש לאיתור פתחי שירות,צינורות מים מתכתיים,סרטי סימון מתכתיים,צוברי גז וכו.

מתריע על המצאות מתח חי

צג דיגיטלי עם בר גרף

ניתן להפעלה עם סוללות רגילות או נטענות

אורך כולל : 109 ס"מ

למוצר הקודם למוצר הבא
לקבלת הצעת מחיר ומידע נוסף

מסמכים

pdf mscan (512KB)
  • Detection Depth Range             5m (dependent on site conditions)
  • Mains/Line Detection                 Visual warning of 50-60 Hz electric field
  • Erase Function                          Background msking function allowing detection work near
                                                      ferrous material
  • Sensitivity                                  4 levels of adjustment
  • Detection Resolution                 20n T
  • Controls                                     Volume, Sensitivity, On/Off and Erase
  • Display                                      Numeric indication of signal amplitude, Multi degment bar graph,
                                                      Polarity indicator, Zero field crossing indicator, Battery level and
                                                      50-60Hz electric field warning.
  • Sound                                       8 volume levels, including mute. Frequency (pitch) varies with signal
                                                     amplitude. In-built loudspeaker plus 3.5mm jack socket for standard
                                                     headphones.
  • Sensor Spacing                       0.5m
  • Overall Lenght                         1.09m
  • Sensor tube lenght                   0.73m
  • Case Construction                   Heavy duty high impact ABS (water and dust resistant to IP65)
  • Sensor tube construction         Epoxy sandwich coated aluminium (water and dust resistant to IP65)
  • Tip protector construction        Heavy duty thermoplastic elastomer
  • Batteries                                  Eight 1.5V Cells, type AA, LR6, or equivalent. Alkaline cells
                                                    recommented.
                                                    Compatible with NiMH rechargeable batteries.
                                                    100 hours battery life typical intermittent use.
                                                    4 segment visual bar battery indicator.
  • Weight                                     1.3 kg (With batteries)
  • Operating Temperature          -20 to +50C
  • Storage Temperature             -30 to +70C
  • Carry bag                               Protective shoulder carry case
