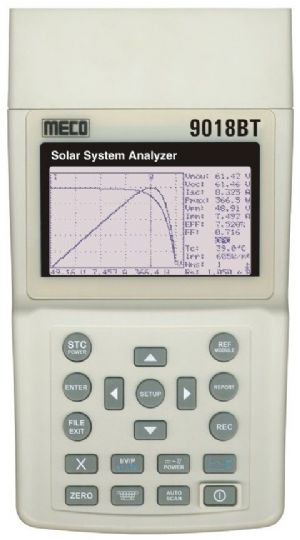

MECO 9018BT

* I-V Curve Test for Solar System
*  Max. Solar System Power (Pmax) search by Auto-Scan : 1000V,
   12A (12000W Capability)
*  The Analyzer and the Remote Solar Detector is connected by
    Bluetooth Wireless Communication (Bluetooth 2.1 + EDR Class 1)
*  The Remote Solar Detector is Moisture-Proof.
*  Intelligent Test Logic with no personnel attendance required in the field.
*  Max. Voltage (Vpm) at Pmax, Max. Current (Ipm) at Pmax
* Voltage at Open Circuit (Voc), Current at Short Circuit (Isc)
*  Efficiency (%) Calculation of Solar System
* Temperature Measurement of Solar Panels
* Irradiance Measurement of Sun Light
* Series Resistance (Rs) Calculation of Solar Panels
*  I-V Curve with Cursor to Display each Data Point
*  With Data Logging / Open Function, the I-V Curves of Solar System
    can be analysed / recorded for a period of time (e.g. 60 min.)
*  Conversion of I-V Curve under OPC to data under Standard Test
    Condition (STC) based upon IEC Standard
* Built-in Calendar Clock
*  Users can set up the Parameters of Solar Panels
*  Users can set up the Series number of Solar Panels. Parameters of
    many Solar Panels can be Measured in One Measurement.
*  The Irradiances and Temperatures of Solar Panels can be continuously
    Measured, Monitored and Recorded.
* Rechargeable Lithium Battery, Low Battery Warning, AC Power Adaptor
* Optical USB Cable for PC Communication
* Solar Connector (optional)
* Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for Verification of           Solar Panel Performance (OK, orNOOK)
* With Power Clamps (SOLAR 15 DC Current Probe and SOLAR 21 AC Power Clamp), continuously             measure / monitor / record the DC Power output of Solar System and the AC Power Output of Inverter       (1 phase or balanced 3 phases); calculate the Efficiency of DC to ACPower Conversion and the                   Efficiency of the max. output power.
