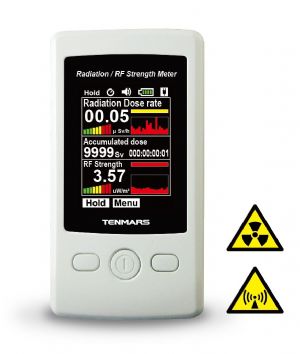

TM-93 מד ומשגוח קרינה גרעינית, גמא ו-RF

Sample rate

1 time /10 seconds or 1 time /40 seconds

Radiation sensor

Geiger- mueller tube

Measurement range

0.05µSv/h ~39.99µSv/h  5.00µRem/h~3999µSv/h

Resolution

0.01µSv/h  0.01µRem/h

Accuracy

±15% cesium-137

Gamma energy range

10KeV to 1.25MeV

X-rays energy range

3KeV to 3.0MeV

β-beta energy range

25KeV to 3.5MeV

CPM

0~1999

CPS

0~212

Dose logger interval

1 to 999 days

Sample rate

1 time /10 seconds

RF sensor

Single axis sensor

Measurement range

0.1~14.0 V/m

Accuracy

±2dB to 2.45GHz

Frequency range

50MHz to 3.5GHz

Range

0.02µW/m² to 484.6µW/m²

0.01µW/cm² to 45.3µW/cm²

36.1mV/m to 13.90V/m

0.01mA/m to 30.01 mA/m

-46 dBm to 16 dBm

Resolution

0.01µW/m²,0.01µW/cm²

0.2 mV/m,0.02 mA/m,2dB
