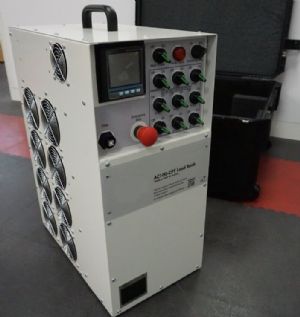

AC100-CPT0-100

Control and Ventilation

Manual controls

1 x supply source rotary selection

2 x on/off push buttons for cooling fans and master load enable function

6 x on/off rotary selector switches for load sections

Emergency stop

Control interface

Manual control (described above)

Power meter with LCD display

Temperature fault LED

Cooling Forced convection, horizontal orientation

Fans 8 x DC axial type

Noise 86dB at 1m

Control supply 230Vac 1-phase 50Hz

Source Internal (supply under test) or external supply (recommended)

Connection Interfaces

Load connections

4 x Powersafe sockets (3P+N)

1 x PE M12 stud connection

External control supply 1 x C14 socket (L+N+PE)

Data 1 x USB Type A

Operating Environment

Suitable for indoor use only

Ambient temperature 5°C to 40°C

Ingress protection IP21

Construction

Resistor elements Wire coils

Element material Stainless steel

Enclosure Aluminium, RAL9002

Portability

1 x lifting handle

1 x wheeled transport case with extendable pull handle

Weight and Dimensions

Safety

Electrical protection

Over current and short circuit fuse protection

Thermal protection

Thermostat cut-out

Fan current monitoring relay
