מק"ט: PC/ABS C

מסמכים

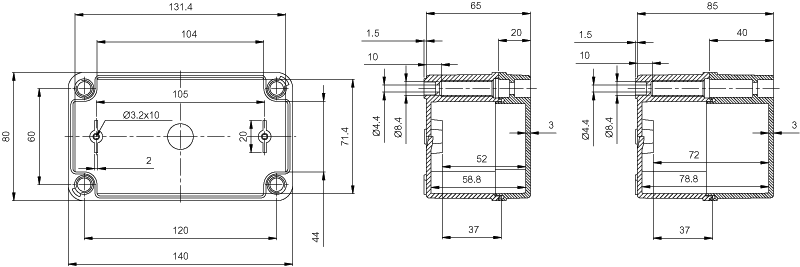

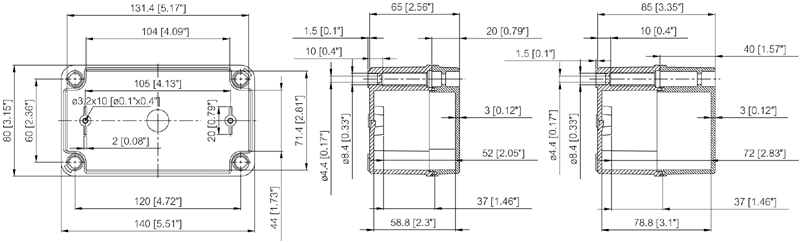

Order symbol	Product nbr	EAN	Dimensions (mm)	Description • Remarks
PC C 65 G	8724305	6418074002037	140 x 80 x 65	Enclosure, PC • Grey cover
PC C 85 G	8724306	6418074002051	140 x 80 x 85	Enclosure, PC • Grey cover
PC C 65 T	8724005	6418074002020	140 x 80 x 65	Enclosure, PC • Transparent cover
PC C 85 T	8724006	6418074002044	140 x 80 x 85	Enclosure, PC • Transparent cover
ABS C 65 G	8784305	6418074002075	140 x 80 x 65	Enclosure, ABS • Grey cover
ABS C 85 G	8784306	6418074002099	140 x 80 x 85	Enclosure, ABS • Grey cover
ABS C 65 T	8784005	6418074002068	140 x 80 x 65	Enclosure, ABS • Transparent cover
ABS C 85 T	8784006	6418074002082	140 x 80 x 85	Enclosure, ABS • Transparent cover
Accessories
C-MP	8524061	6418074033581	110 x 54	Mounting plate, for enclosures:
CHM-3	8524031	6418074033505	35 x 110	DIN-35 Mounting rail, for enclosures:
FP 22040	8522340	6418074033475		Wall fastening lug (2 pcs), for enclosures: • incl. screws
