מפה הנדסת חשמל בע"מ

מק"ט: PC/ABS F

מסמכים

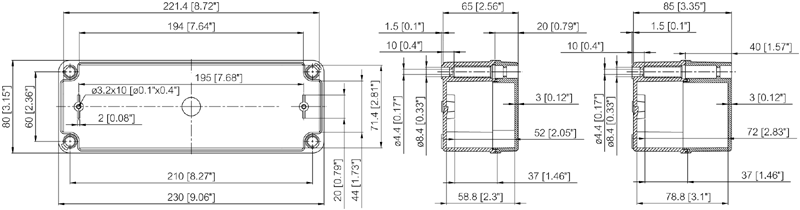

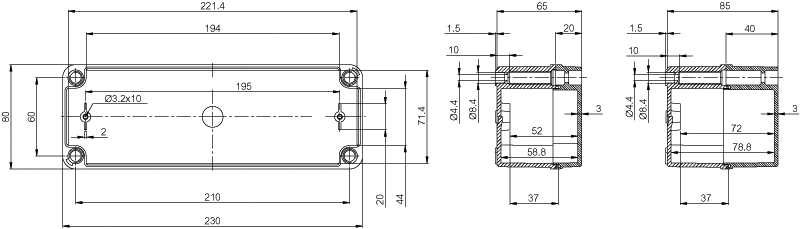

Order symbol	Product nbr	EAN	Dimensions (mm)	Description • Remarks
PC F 65 G	8724311	6418074002198	230 x 80 x 65	Enclosure, PC • Grey cover
PC F 85 G	8724312	6418074002211	230 x 80 x 85	Enclosure, PC • Grey cover
PC F 65 T	8724011	6418074002181	230 x 80 x 65	Enclosure, PC • Transparent cover
PC F 85 T	8724012	6418074002204	230 x 80 x 85	Enclosure, PC • Transparent cover
ABS F 65 G	8784311	6418074002235	230 x 80 x 65	Enclosure, ABS • Grey cover
ABS F 85 G	8784312	6418074002259	230 x 80 x 85	Enclosure, ABS • Grey cover
ABS F 65 T	8784011	6418074002228	230 x 80 x 65	Enclosure, ABS • Transparent cover
ABS F 85 T	8784012	6418074002242	230 x 80 x 85	Enclosure, ABS • Transparent cover
Accessories
F-MP	8524063	6418074033604	200 x 54	Mounting plate, for enclosures:
FM-3	8524033	6418074033529	35 x 200	DIN-35 Mounting rail, for enclosures:
FP 22040	8522340	6418074033475		Wall fastening lug (2 pcs), for enclosures: • incl. screws
