מק"ט: PC/ABS 17/16L

מסמכים

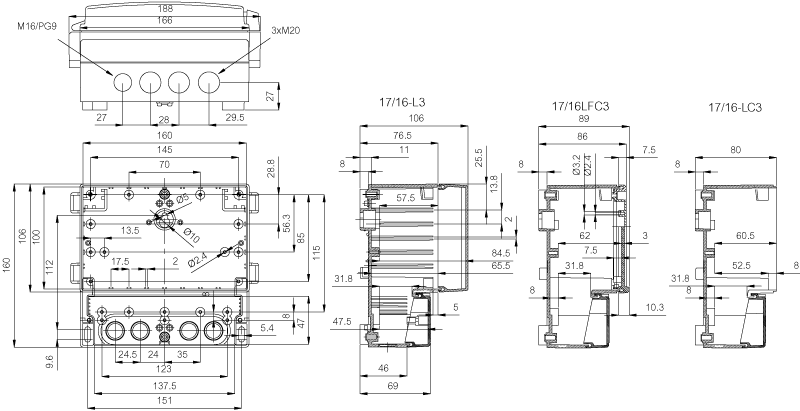

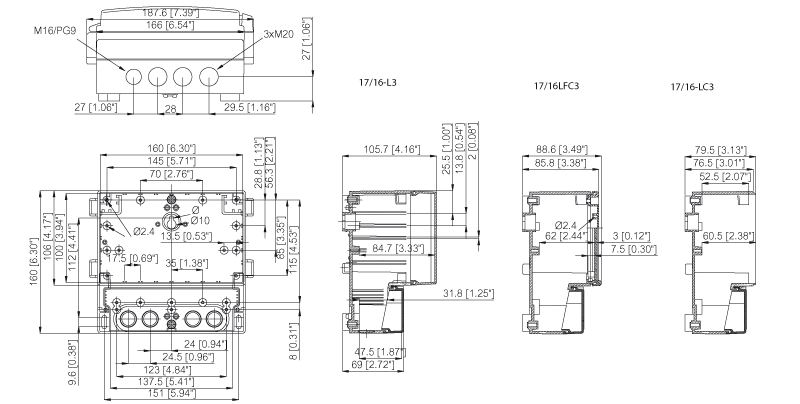

Order symbol	Product nbr	EAN	Dimensions (mm)	Description • Remarks
PC 17/16-LC3	7520104	6418074039309	166 x 160 x 80	Enclosure, PC • Without main cover
PC 17/16-L3	7525105	6418074056719	188 x 160 x 106	Enclosure, PC • Smoked transparent hinged cover
PC 17/16-L3TT	7526105	6418074062017	188 x 160 x 106	Enclosure, PC • Clear transparent hinged cover
PC 17/16-LFC3	7520204	6418074010247	166 x 160 x 89	Enclosure, PC • Grey screw cover
ABS 17/16-LC3	7580104	6418074039316	166 x 160 x 80	Enclosure, ABS • Without main cover
ABS 17/16-L3	7585105	6418074056764	188 x 160 x 106	Enclosure, ABS • Smoked transparent hinged cover
ABS 17/16-L3TT	7586105	6418074062079	188 x 160 x 106	Enclosure, ABS • Clear transparent hinged cover
Accessories
MP 17/16	7720071	6418074036735	136 x 133	Mounting plate, for enclosures:
FP 17/16	7720070	6418074035783	158 x 98	Front plate (aluminium), for enclosures:
FC PC 17/16	7720102	6418074034687	166 x 106 x 16	Frame of PC front plate, for enclosures:
