מפה הנדסת חשמל בע"מ

מק"ט: PC/ABS 0808

מסמכים

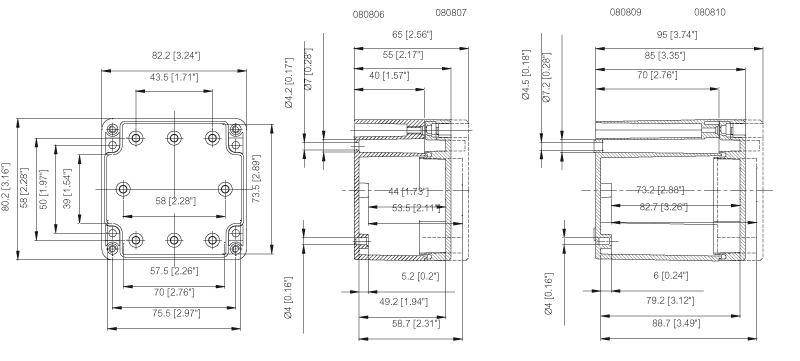

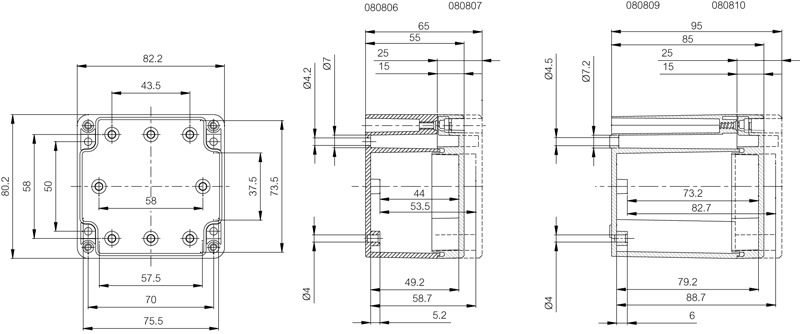

Order symbol	Product nbr	EAN	Dimensions (mm)	Description • Remarks
PC 080806	7032540	6418074058317	82 x 80 x 55	Enclosure, PC • Grey cover
PC 080807	7032560	6418074003614	82 x 80 x 65	Enclosure, PC • Grey cover
PC 080809	7032550	6418074058324	82 x 80 x 85	Enclosure, PC • Grey cover
PC 080810	7032570	6418074058331	82 x 80 x 95	Enclosure, PC • Grey cover
PCT 080806	7022541	6418074058522	82 x 80 x 55	Enclosure, PC • Transparent cover
PCT 080807	7022561	6418074003737	82 x 80 x 65	Enclosure, PC • Transparent cover
PCT 080809	7022551	6418074058539	82 x 80 x 85	Enclosure, PC • Transparent cover
PCT 080810	7022571	6418074058546	82 x 80 x 95	Enclosure, PC • Transparent cover
AB 080806	7083540	6418074058737	82 x 80 x 55	Enclosure, ABS • Grey cover
AB 080807	7083560	6418074003492	82 x 80 x 65	Enclosure, ABS • Grey cover
AB 080809	7083550	6418074058744	82 x 80 x 85	Enclosure, ABS • Grey cover
AB 080810	7083570	6418074058751	82 x 80 x 95	Enclosure, ABS • Grey cover
Accessories
TM 0808	9512011	6418074033994	56 x 71	Mounting plate, for enclosures:
TRM 0808	9820004	6418074034144	15 x 68	DIN-15 Mounting rail, for enclosures:
TF 28037	7028337	6418074033734		Wall fastening lug (4 pcs), for enclosures: • incl. screws
TH A	9802001	6418074034120		Grey plastic hinges (2 pcs) • incl. mounting screws
