מק"ט: PC/ABS 0812

מסמכים

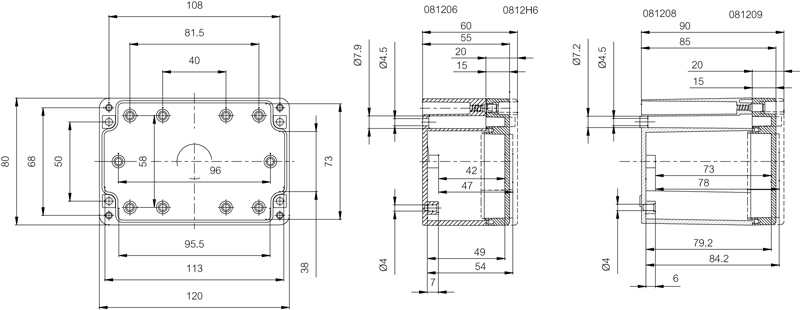

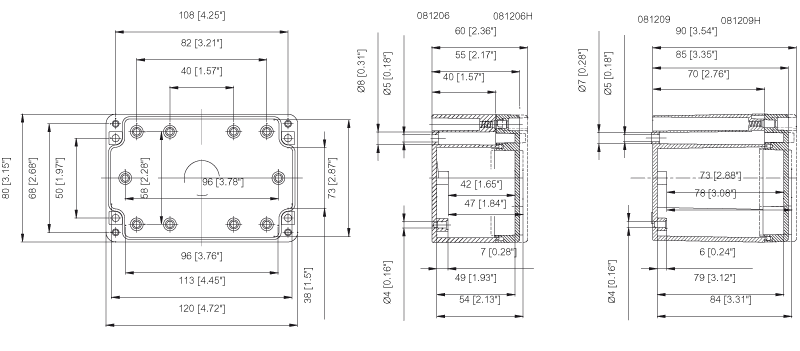

Order symbol	Product nbr	EAN	Dimensions (mm)	Description • Remarks
PC 081206	7032580	6418074003621	120 x 80 x 55	Enclosure, PC • Grey cover
PC 081206H	7032590	6418074058348	120 x 80 x 60	Enclosure, PC • Grey cover
PC 081209	7032600	6418074058355	120 x 80 x 85	Enclosure, PC • Grey cover
PC 081209H	7032610	6418074058362	120 x 80 x 90	Enclosure, PC • Grey cover
PCT 081206	7022581	6418074003744	120 x 80 x 55	Enclosure, PC • Transparent cover
PCT 081206H	7022591	6418074058553	120 x 80 x 60	Enclosure, PC • Transparent cover
PCT 081209	7022601	6418074058560	120 x 80 x 85	Enclosure, PC • Transparent cover
PCT 081209H	7022611	6418074058577	120 x 80 x 90	Enclosure, PC • Transparent cover
AB 081206	7083580	6418074003508	120 x 80 x 55	Enclosure, ABS • Grey cover
AB 081206H	7083590	6418074058768	120 x 80 x 60	Enclosure, ABS • Grey cover
AB 081209	7083600	6418074058775	120 x 80 x 85	Enclosure, ABS • Grey cover
AB 081209H	7083610	6418074058782	120 x 80 x 90	Enclosure, ABS • Grey cover
Accessories
TM 0812	9512012	6418074034007	71 x 94	Mounting plate, for enclosures:
TRM 0808	9820004	6418074034144	15 x 68	DIN-15 Mounting rail, for enclosures:
TRM 0812	9820009	6418074034151	15 x 106	DIN-15 Mounting rail, for enclosures:
ARH 12	9822001	6418074034274	35 x 105	DIN-35 Mounting rail, for enclosures:
TF 28037	7028337	6418074033734		Wall fastening lug (4 pcs), for enclosures: • incl. screws
TH A	9802001	6418074034120		Grey plastic hinges (2 pcs) • incl. mounting screws
