מפה הנדסת חשמל בע"מ

מק"ט: PC/ABS 1534

מסמכים

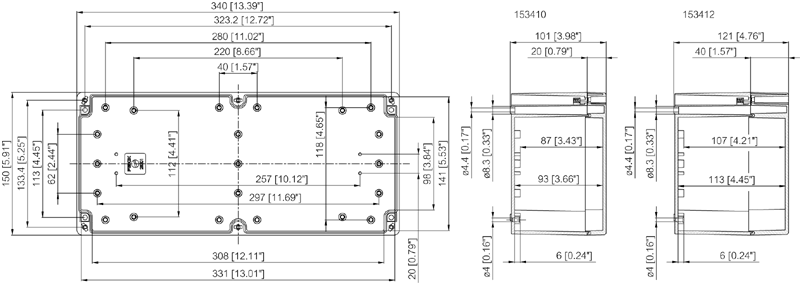

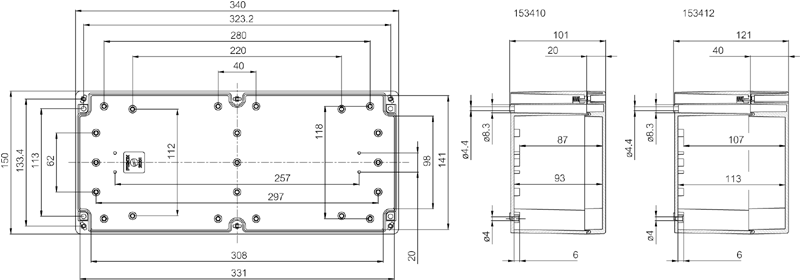

Order symbol	Product nbr	EAN	Dimensions (mm)	Description • Remarks
PC 153410	7032700	6418074058447	340 x 150 x 101	Enclosure, PC • Grey cover
PC 153412	7032710	6418074058454	340 x 150 x 121	Enclosure, PC • Grey cover
PCT 153410	7022701	6418074058652	340 x 150 x 101	Enclosure, PC • Transparent cover
PCT 153412	7022711	6418074058669	340 x 150 x 121	Enclosure, PC • Transparent cover
PCQ 153410	7033701	6418074059000	340 x 150 x 101	Enclosure, PC • Grey cover (quick-locking)
PCQ 153412	7033711	6418074059017	340 x 150 x 121	Enclosure, PC • Grey cover (quick-locking)
PCTQ 153410	7022700	6418074059086	340 x 150 x 101	Enclosure, PC • Transparent cover (quick-locking)
PCTQ 153412	7022710	6418074059093	340 x 150 x 121	Enclosure, PC • Transparent cover (quick-locking)
AB 153410	7083700	6418074058867	340 x 150 x 101	Enclosure, ABS • Grey cover
AB 153412	7083710	6418074058874	340 x 150 x 121	Enclosure, ABS • Grey cover
ABQ 153410	7083701	6418074059161	340 x 150 x 101	Enclosure, ABS • Grey cover (quick-locking)
ABQ 153412	7083711	6418074059178	340 x 150 x 121	Enclosure, ABS • Grey cover (quick-locking)
Accessories
TM 1534	9512021	6418074059437	303 x 136	Mounting plate, for enclosures:
TRH 34	9822022	6418074059697	35 x 307	DIN-35 Mounting rail, for enclosures:
TRH 15	9822021	6418074059680	35 x 122	DIN-35 Mounting rail, for enclosures:
TF 28037	7028337	6418074033734		Wall fastening lug (4 pcs), for enclosures: • incl. screws
TH A	9802001	6418074034120		Grey plastic hinges (2 pcs) • incl. mounting screws
