מפה הנדסת חשמל בע"מ

מק"ט: PC/ABS 1216

מסמכים

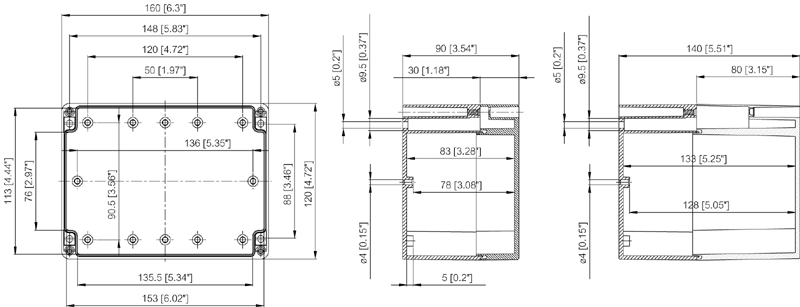

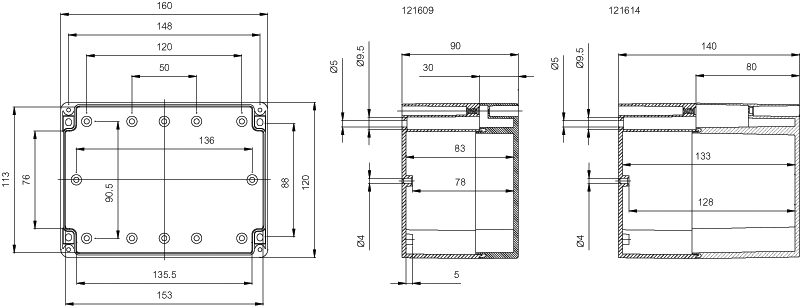

Order symbol	Product nbr	EAN	Dimensions (mm)	Description • Remarks
PC 121609	7032720	6418074003669	160 x 120 x 90	Enclosure, PC • Grey cover
PC 121614	7032730	6418074058416	160 x 120 x 140	Enclosure, PC • Grey cover
PCT 121609	7022721	6418074003782	160 x 120 x 90	Enclosure, PC • Transparent cover
PCT 121614	7022731	6418074058621	160 x 120 x 140	Enclosure, PC • Transparent cover
AB 121609	7083720	6418074003546	160 x 120 x 90	Enclosure, ABS • Grey cover
AB 121614	7083730	6418074058836	160 x 120 x 140	Enclosure, ABS • Grey cover
Accessories
TM 1216	9512036	6418074034038	111 x 134	Mounting plate, for enclosures:
TRM 0816	9820013	6418074034168	15 x 146	DIN-15 Mounting rail, for enclosures:
MIV 10	5514082	6418074033192	35 x 100	DIN-35 Mounting rail, for enclosures:
TRH 1216	9822028	6418074034410	35 x 146	DIN-35 Mounting rail, for enclosures:
TF 28037	7028337	6418074033734		Wall fastening lug (4 pcs), for enclosures: • incl. screws
TH A	9802001	6418074034120		Grey plastic hinges (2 pcs) • incl. mounting screws
