Order symbol	Product nbr	EAN	Dimensions (mm)	Description • Remarks

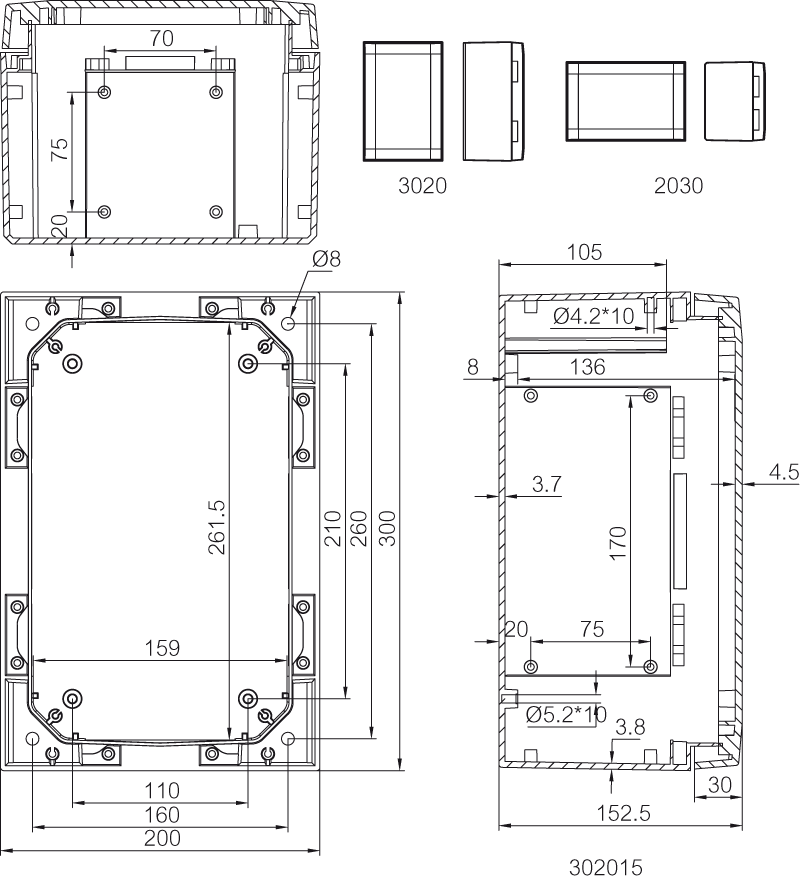

ARCA 302015	8120002	6418074079138	300 x 200 x 150	Cabinet, PC • Grey cover, 1-point locking, hinges on the long side
ARCA 302015W	8120122	6418074079916	300 x 200 x 150	Cabinet, PC • Grey cover with window, 1-point locking, hinges on the long side
Accessories
MPS ARCA 3020	8120731	6418074082541	250 x 150	Mounting plate • Galvanized steel, for size 300x200x150
MPP ARCA 3020	8120751	6418074082725	250 x 150	Mounting plate perforated • Galvanized steel, for size 300x200x150
MPX ARCA 3020	8120741	6418074082633	250 x 150	Mounting plate • Pertinax, for size 300x200x150
DRS ARCA 302015	8120760	6418074082817		DIN rail frame set • 1 row x 5 modules, for size 300x200x150
IDS ARCA 3020	8120711	6418074082367		Inner door set • Galvanized steel, for size 300x200x150
PMK ARCA 20	8120840	6418074083203		Pole mounting kit • For size 300x200x150
