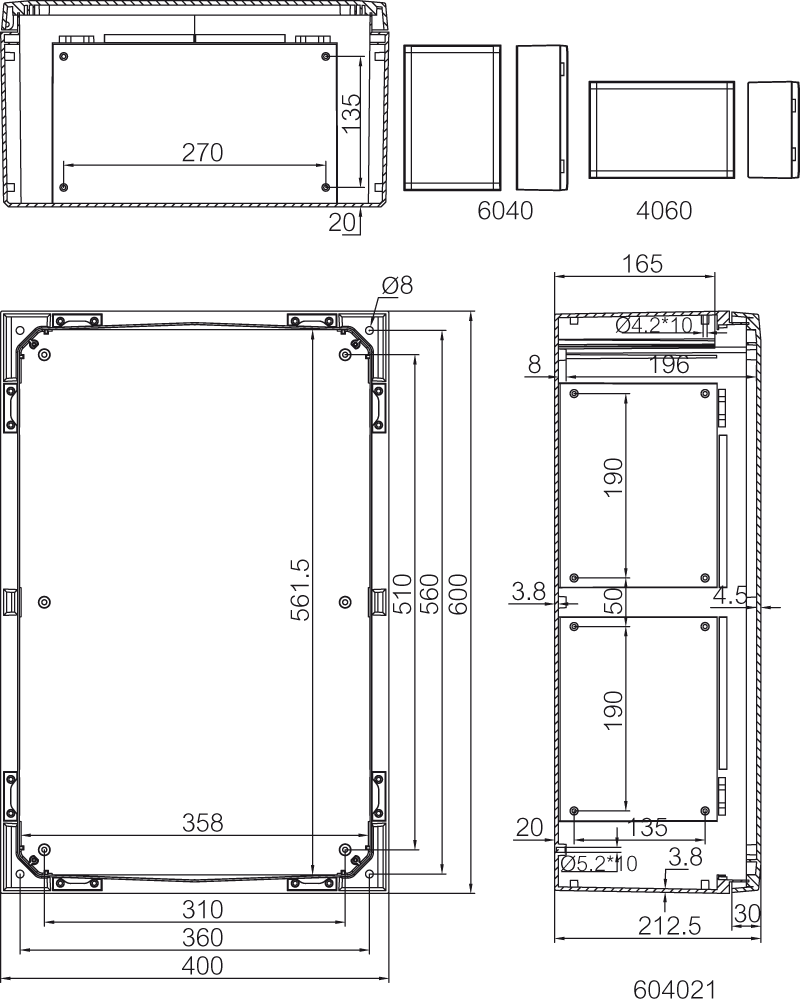

ARCA 6040

Order symbol

Product nbr

EAN

Dimensions (mm)

Description • Remarks

ARCA 604021

8120012

6418074079237

600 x 400 x 210

Cabinet, PC • Grey cover, 2-point locking, hinges on the long side

ARCA 604021S

8120092

6418074079756

600 x 400 x 210

Cabinet, PC • Grey cover, swinghandle, hinges on the long side

ARCA 604021W

8120132

6418074080035

600 x 400 x 210

Cabinet, PC • Grey cover with window, 2-point locking, hinges on the long side

ARCA 604021SW

8120212

6418074080554

600 x 400 x 210

Cabinet, PC • Grey cover with window, swinghandle, hinges on the long side

ARCA 604021F

8120252

6418074080813

600 x 400 x 210

Cabinet, PC, flange • Grey cover, 2-point locking, hinges on the long side, flange opening size 2

ARCA 604021SF

8120332

6418074081339

600 x 400 x 210

Cabinet, PC, flange • Grey cover, swinghandle, hinges on the long side, flange opening size 2

ARCA 604021WF

8120372

6418074081599

600 x 400 x 210

Cabinet, PC, flange • Grey cover with window, 2-point locking, hinges on the long side, flange opening size 2

ARCA 604021SWF

8120452

6418074082114

600 x 400 x 210

Cabinet, PC, flange • Grey cover with window, swinghandle, hinges on the long side, flange opening size 2

Accessories

MPS ARCA 6040

8120736

6418074082596

550 x 350

Mounting plate • Galvanized steel, for size 600x400x210

MPP ARCA 6040

8120756

6418074082770

550 x 350

Mounting plate perforated • Galvanized steel, for size 600x400x210

MPX ARCA 6040

8120746

6418074082688

550 x 350

Mounting plate • Pertinax, for size 600x400x210

DRS ARCA 604021

8120770

6418074082916

DIN rail frame set • 3 rows x 16 modules, for size 600x400x210

IDS ARCA 6040

8120716

6418074082411

Inner door set • Galvanized steel, for size 600x400x210

PMK ARCA 40

8120842

6418074083227

Pole mounting kit • For sizes 300x400x150/210, 500x400x210, 600x400x210
