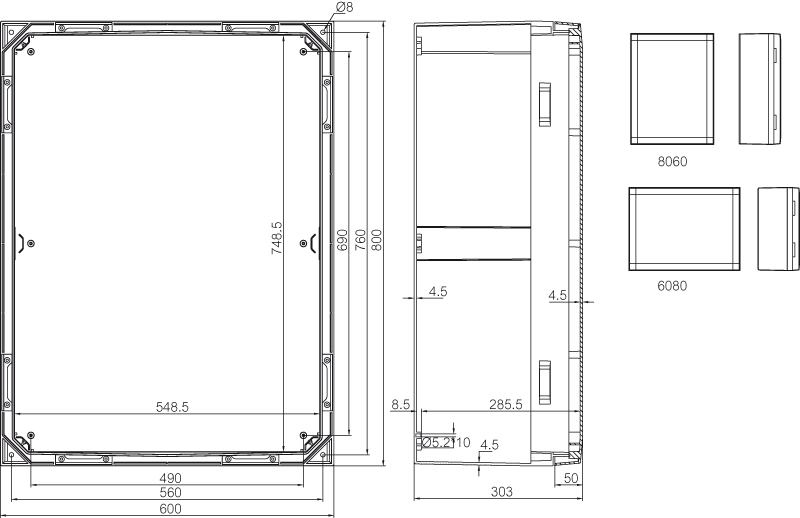

ARCA 8060

Order symbol

Product nbr

EAN

Dimensions (mm)

Description • Remarks

ARCA 806030

8120019

6418074079305

800 x 600 x 300

Cabinet, PC • Grey cover, 2-point locking, hinges on the long side

ARCA 806030S

8120099

6418074079824

800 x 600 x 300

Cabinet, PC • Grey cover, swinghandle, hinges on the long side

ARCA 806030W

8120139

6418074080103

800 x 600 x 300

Cabinet, PC • Grey cover with window, 2-point locking, hinges on the long side

ARCA 806030SW

8120219

6418074080622

800 x 600 x 300

Cabinet, PC • Grey cover with window, swinghandle, hinges on the long side

ARCA 806030F

8120259

6418074080882

800 x 600 x 300

Cabinet, PC, flange • Grey cover, 2-point locking, hinges on the long side, flange opening size 3

ARCA 806030SF

8120339

6418074081407

800 x 600 x 300

Cabinet, PC, flange • Grey cover, swinghandle, hinges on the long side, flange opening size 3

ARCA 806030WF

8120379

6418074081667

800 x 600 x 300

Cabinet, PC, flange • Grey cover with window, 2-point locking, hinges on the long side, flange opening size 3

ARCA 806030SWF

8120459

6418074082183

800 x 600 x 300

Cabinet, PC, flange • Grey cover with window, swinghandle, hinges on the long side, flange opening size 3

Accessories

MPS ARCA 8060

8120739

6418074082626

750 x 550

Mounting plate • Galvanized steel, for size 800x600x300

MPX ARCA 8060

8120749

6418074082718

750 x 550

Mounting plate • Pertinax, for size 800x600x300

MPP ARCA 8060

8120759

6418074082800

750 x 550

Mounting plate perforated • Galvanized steel, for size 800x600x300

DRS ARCA 806030

8120777

6418074082985

DIN rail frame set • 4 rows x 26 modules, for size 800x600x300

IDS ARCA 8060

8120719

6418074082442

Inner door set • Galvanized steel, for size 800x600x300

PMK ARCA 60

8120844

6418074083241

Pole mounting kit • For sizes 400x600x210, 800x600x300
