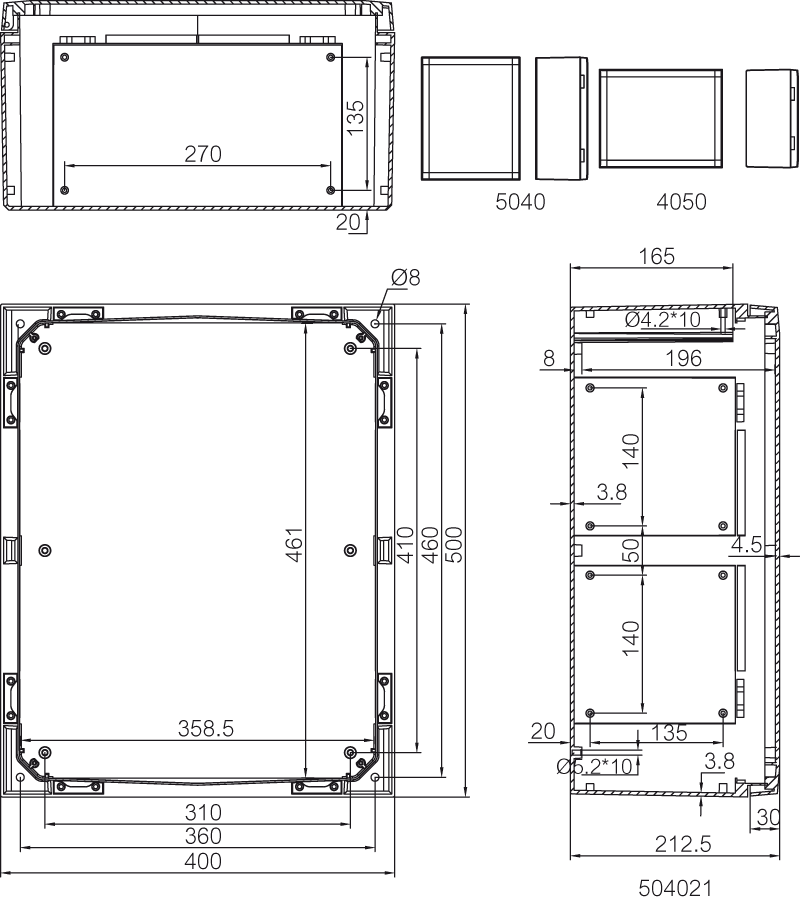

ARCA 5040

Order symbol

Product nbr

EAN

Dimensions (mm)

Description • Remarks

ARCA 504021

8120011

6418074079220

500 x 400 x 210

Cabinet, PC • Grey cover, 2-point locking, hinges on the long side

ARCA 504021S

8120091

6418074079749

500 x 400 x 210

Cabinet, PC • Grey cover, swinghandle, hinges on the long side

ARCA 504021W

8120131

6418074080028

500 x 400 x 210

Cabinet, PC • Grey cover with window, 2-point locking, hinges on the long side

ARCA 504021SW

8120211

6418074080547

500 x 400 x 210

Cabinet, PC • Grey cover with window, swinghandle, hinges on the long side

ARCA 504021F

8120251

6418074080806

500 x 400 x 210

Cabinet, PC, flange • Grey cover, 2-point locking, hinges on the long side, flange opening size 2

ARCA 504021SF

8120331

6418074081322

500 x 400 x 210

Cabinet, PC, flange • Grey cover, swinghandle, hinges on the long side, flange opening size 2

ARCA 504021WF

8120371

6418074081582

500 x 400 x 210

Cabinet, PC, flange • Grey cover with window, 2-point locking, hinges on the long side, flange opening size 2

ARCA 504021SWF

8120451

6418074082107

500 x 400 x 210

Cabinet, PC, flange • Grey cover with window, swinghandle, hinges on the long side, flange opening size 2

Accessories

MPS ARCA 5040

8120735

6418074082589

450 x 350

Mounting plate • Galvanized steel, for size 500x400x210

MPP ARCA 5040

8120755

6418074082763

450 x 350

Mounting plate perforated • Galvanized steel, for size 500x400x210

MPX ARCA 5040

8120745

6418074082671

450 x 350

Mounting plate • Pertinax, for size 500x400x210

DRS ARCA 504021

8120769

6418074082909

DIN rail frame set • 3 rows x 16 modules, for size 500x400x210

IDS ARCA 5040

8120715

6418074082404

Inner door set • Galvanized steel, for size 500x400x210

PMK ARCA 40

8120842

6418074083227

Pole mounting kit • For sizes 300x400x150/210, 500x400x210, 600x400x210
