ARCA 7050

Order symbol

Product nbr

EAN

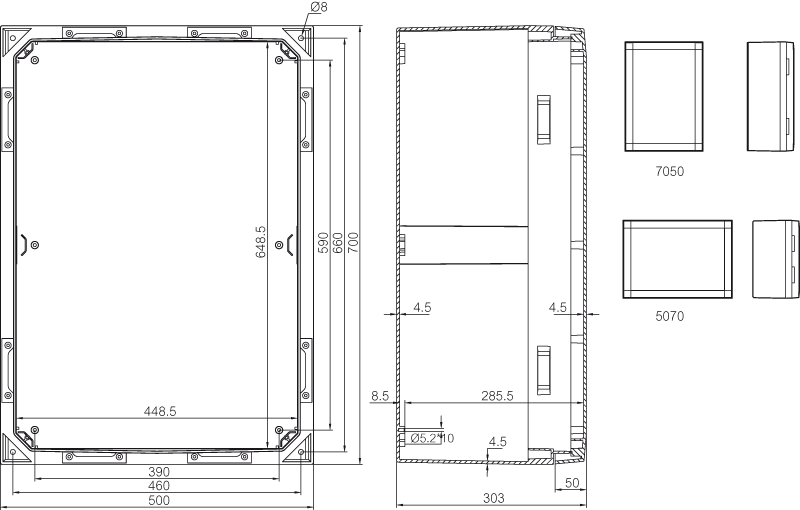

Dimensions (mm)

Description • Remarks

ARCA 705030

8120017

6418074079282

700 x 500 x 300

Cabinet, PC • Grey cover, 2-point locking, hinges on the long side

ARCA 705030S

8120097

6418074079800

700 x 500 x 300

Cabinet, PC • Grey cover, swinghandle, hinges on the long side

ARCA 705030W

8120137

6418074080080

700 x 500 x 300

Cabinet, PC • Grey cover with window, 2-point locking, hinges on the long side

ARCA 705030SW

8120217

6418074080608

700 x 500 x 300

Cabinet, PC • Grey cover with window, swinghandle, hinges on the long side

ARCA 705030F

8120257

6418074080868

700 x 500 x 300

Cabinet, PC, flange • Grey cover, 2-point locking, hinges on the long side, flange opening size 3

ARCA 705030SF

8120337

6418074081384

700 x 500 x 300

Cabinet, PC, flange • Grey cover, swinghandle, hinges on the long side, flange opening size 3

ARCA 705030WF

8120377

6418074081643

700 x 500 x 300

Cabinet, PC, flange • Grey cover with window, 2-point locking, hinges on the long side, flange opening size 3

ARCA 705030SWF

8120457

6418074082169

700 x 500 x 300

Cabinet, PC, flange • Grey cover with window, swinghandle, hinges on the long side, flange opening size 3

Accessories

MPS ARCA 7050

8120738

6418074082619

650 x 450

Mounting plate • Galvanized steel, for size 700x500x300

MPP ARCA 7050

8120758

6418074082794

650 x 450

Mounting plate perforated • Galvanized steel, for size 700x500x300

MPX ARCA 7050

8120748

6418074082701

650 x 450

Mounting plate • Pertinax, for size 700x500x300

DRS ARCA 705030

8120775

6418074082961

DIN rail frame set • 4 rows x 21 modules, for size 700x500x300

IDS ARCA 7050

8120718

6418074082435

Inner door set • Galvanized steel, for size 700x500x300

PMK ARCA 50

8120843

6418074083234

Pole mounting kit • For sizes 400x500x210, 700x500x300
